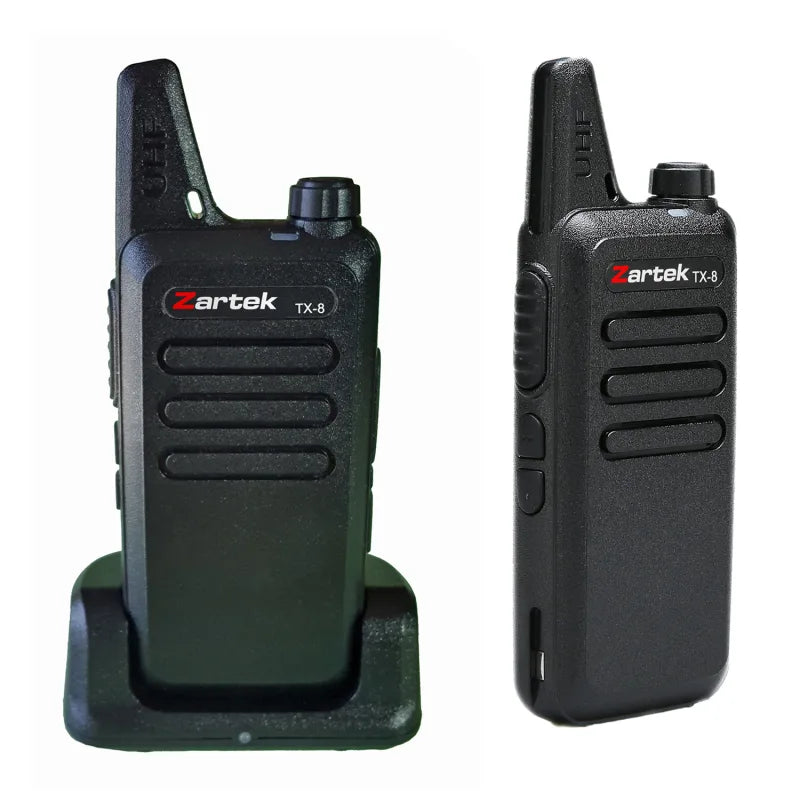

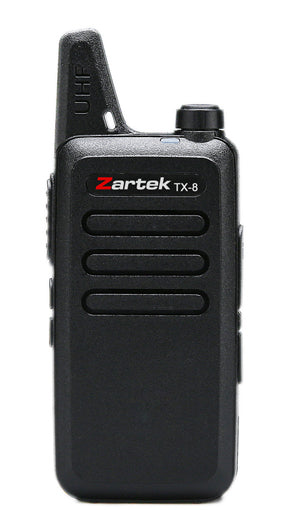

Zartek TX8 2-Way Radio

• Pre-programmed 16 Channels
• Power Output: 500mW License Free / 3W Licensed
• Tones 50 CTCSS / 210 DCS
• Clear Loud Audio
• Durable Ultra Thin Casing, Compact & Lightweight
• Long Battery Life & Low Battery Alert
• Channel Announce
• External Microphone / Speaker Jack
• Programmable Functions via PC (Optional):
• Channels Frequencies (1 – 8 , 1a – 5a) & Tones
• Squelch Levels 0 – 9
• Time Out Timer 15 – 600s
• VOX On/Off , 9 Sensitivity Levels, Delay 0.5-3s
• Emergency Alarm Local
• Scanning upto 16 Channels
• Programming Read/Write Password Protected (Optional)
• Approved by ICASA
• 1 year limited warranty
• IDEAL for General use, Warehouses, Outdoors, Hotels, Events & Medium Duty use.

Range: (terrain dependent):
Indoors: 600m-1.2km
Outdoors: 2-6km
Elevated line-of-sight: 10-30km

UHF 446 & 464MHz on 0.5W (License Free)
400 – 470MHz on 3W (License required)

CHARGING:

Direct Plug-in C type USB

Desktop Charger Stand
2 Methods of Charging Included: Plug-in USB or Desktop Stand
Red LED : Charging Mode, Green LED : Full
Charge time: 3 Hrs
Operating time (Average) on 0.5W: 25 hrs on 5:5:90 duty cycle

Compatible to all license-free radios, Check factory Channel settings to link
446 MHz (8 Freq.) & 464 MHz (5 Freq.):
Zartek ZA-748, ZA-758, ZA-725, ZA-705, ZA-708, COM8 & Pro8 Radio (446 MHz)
Zartek Pro5 & ZA-200 Radio (Model# 21-1860AF) (464 MHz)

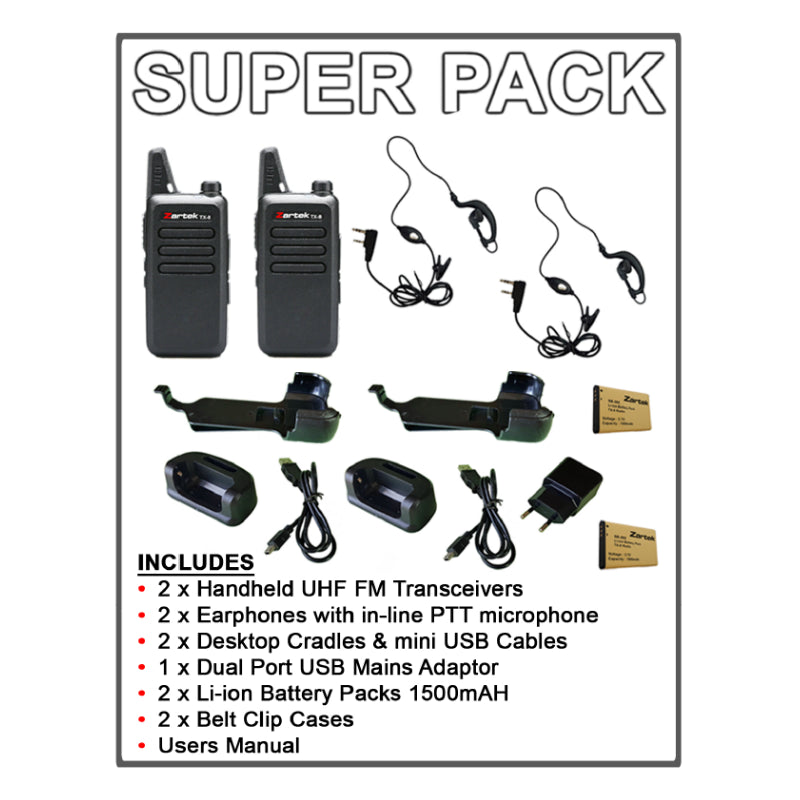

AVAILABLE AS SUPER PACK

SUPER PACK INCLUDED ITEMS:
2 x Handheld UHF FM Transceivers
2 x Earphones with in-line PTT microphone
2 x Desktop Cradles & C type USB Cables
1 x Dual Port USB Mains Adaptor
2 x Li-ion Battery Packs 1500mAH
2 x Belt Clip Cases
Users Manual

Change LANGUAGE
Select channel 16 , Shí liù
Switch radio OFF
Hold in side + button and switch radio ON whilst holding in button.

Manual VOX, voice activated transmit, Toggle:
Switch radio ON and select Channel 7
Switch radio OFF
Hold in side PLUS + button and Turn ON radio whilst pressing in button
VOX will turn ON
To turn OFF, follow the same above procedure.
