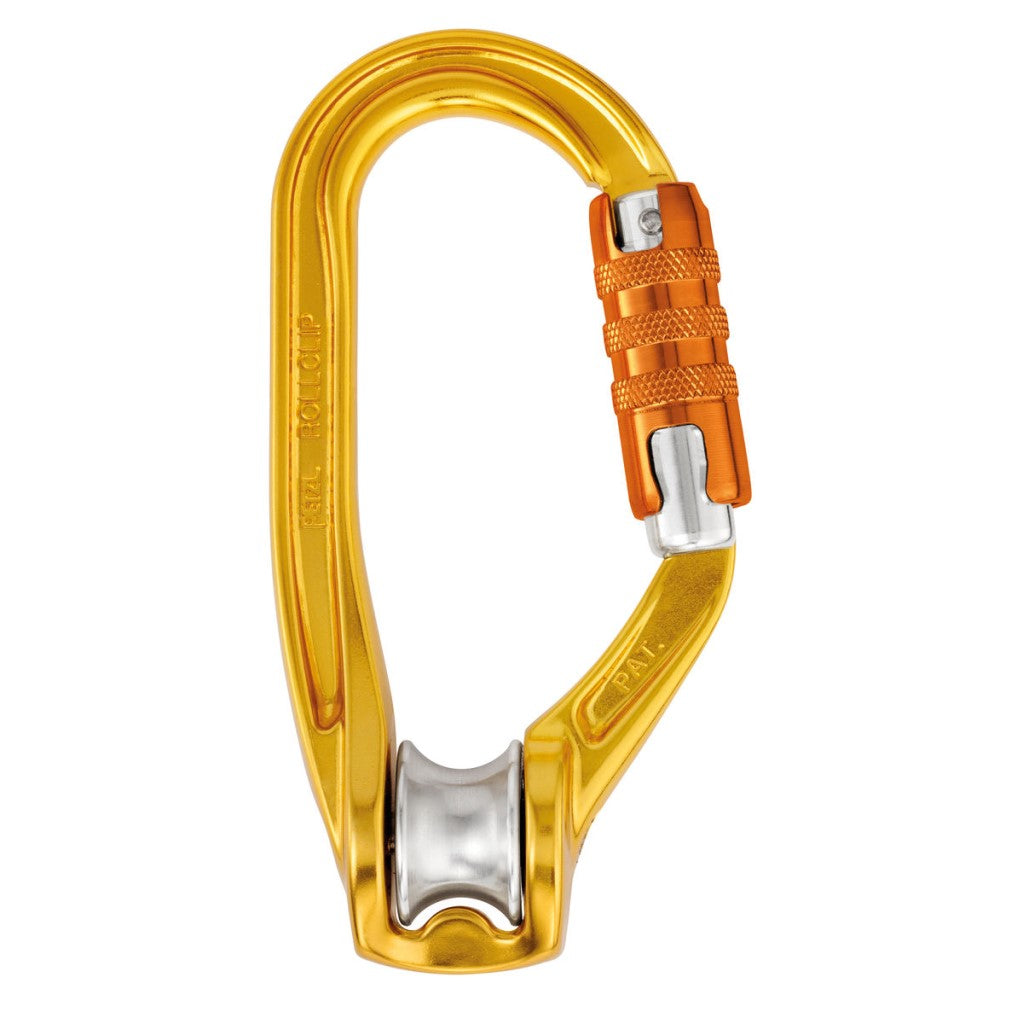

Petzl RollClip A Pulley TRIACT-LOCK Pulley-Carabiner

Description

Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Features

•     Easier handling:
•     - sheave mounted on sealed ball bearings for excellent efficiency
•     - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
•     - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
•     - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
•     H cross-section of carabiner:
•     - ensures an improved strength-to-weight ratio
•     - protects markings from abrasion
•     Available in versions with or without TRIACT-LOCK locking system

Specifications

• Material(s): aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
