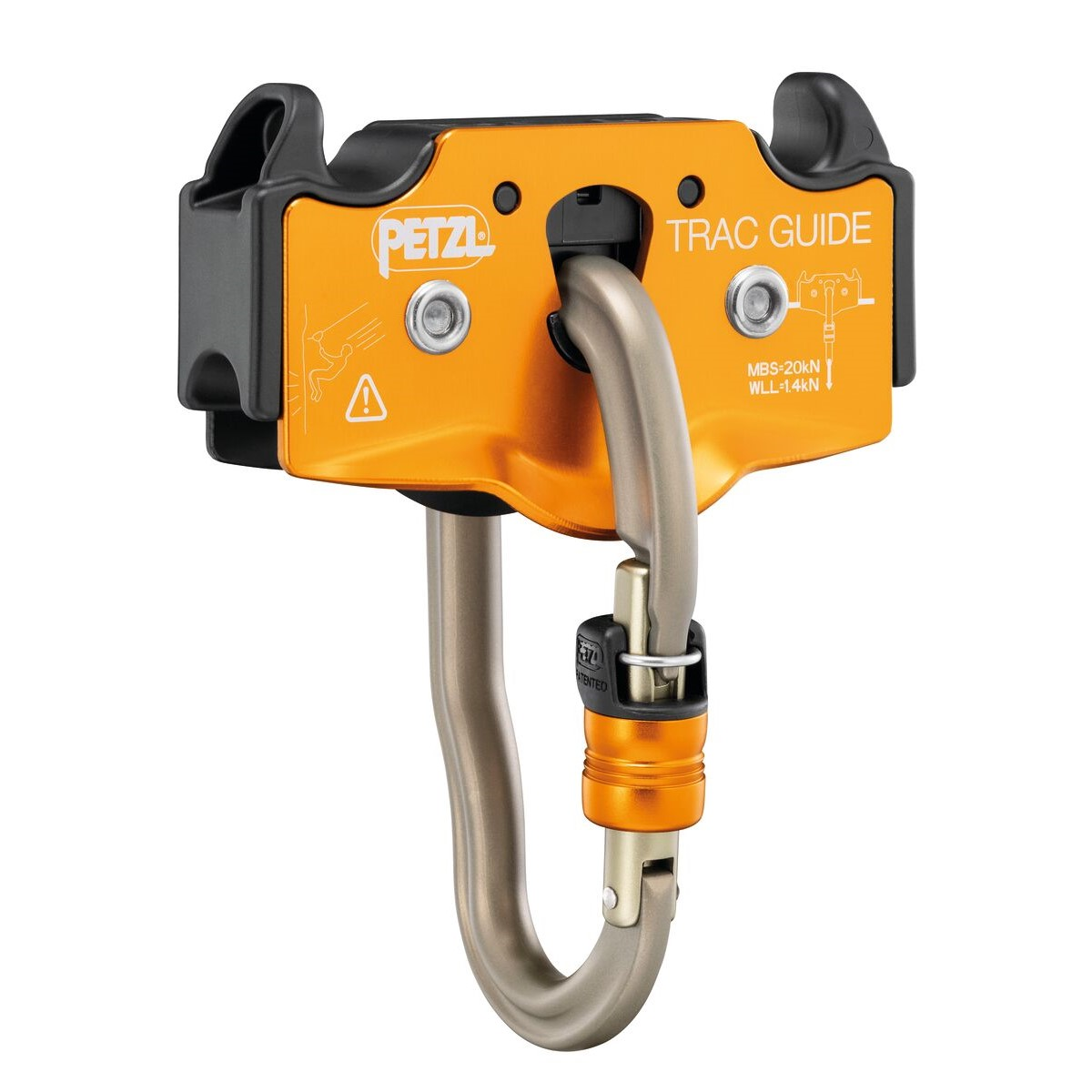

Petzl Trac Guide Pulley

Description

The TRAC GUIDE is a trolley designed for adventure parks. Featuring an ergonomic captive carabiner, it allows staff to quickly install the trolley on the cable with one hand. Because the carabiner pivots, the trolley remains in position on the cable when it makes contact with the end brake of the zipline. The ends are equipped with protective impact surfaces to reduce the risk of pinched fingers, and two connector support grooves to help avoid abrasion from the cable. The JOKO and AVENTEX lanyards are directly integrated with the carabiner, limiting the risk of separation or loss. The carabiner’s reinforced construction provides greater resistance to humid and salty environments. Product lifespan is optimized with highly durable bearings and removable impact surfaces available as spare parts.

Features

• Trolley designed for adventure parks:

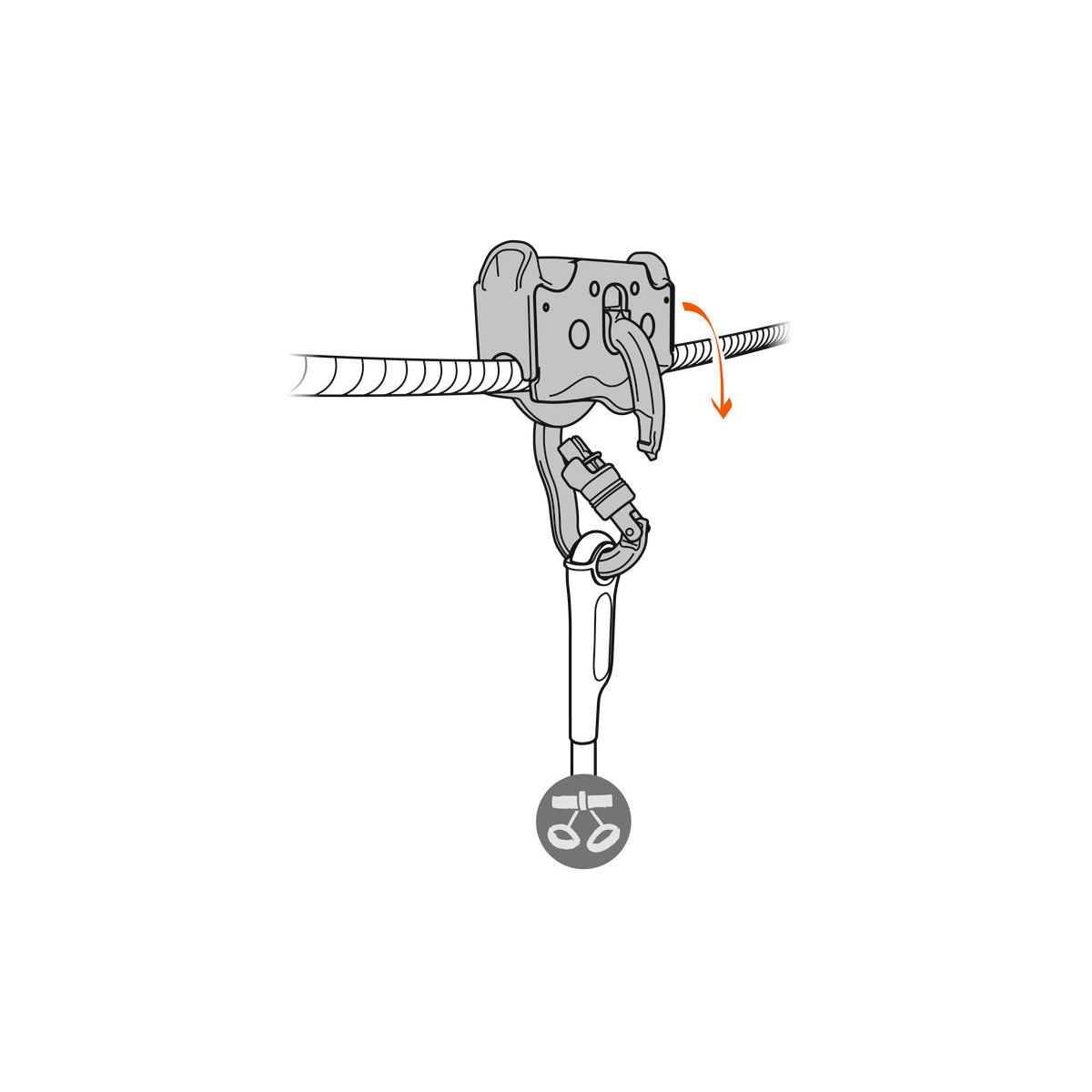

  - Ergonomic captive carabiner allows staff to very quickly install the trolley on the cable with one hand
  - Two aligned sheaves provide excellent stability on the zipline

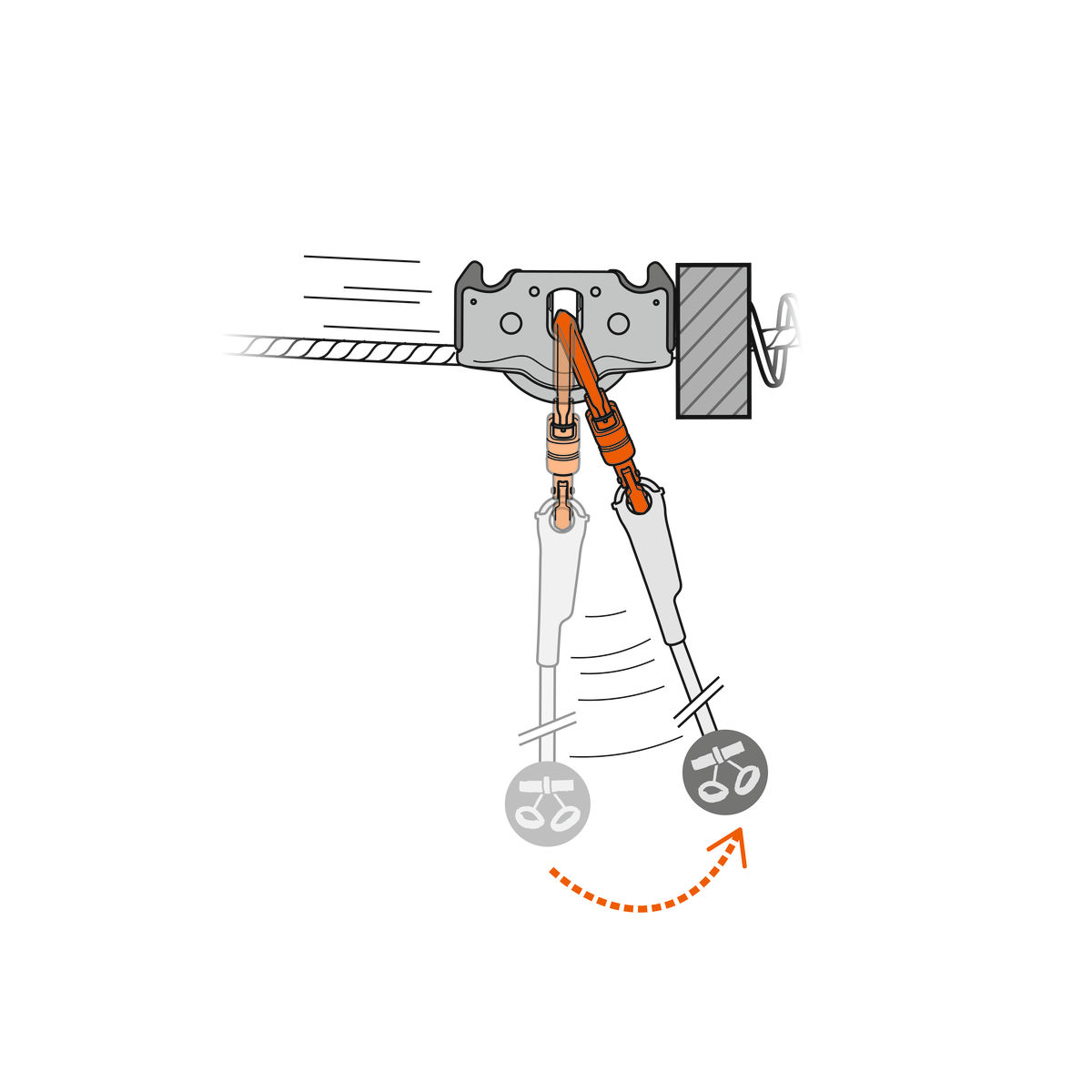

  - Because the carabiner can pivot, the trolley remains in position on the cable when it makes contact with the end brake of the zipline
  - Front and rear impact surfaces limit the risk of pinched fingers
  - Two positioning support grooves for the connectors limit abrasion from the cable
  - JOKO or AVENTEX lanyards are directly integrated in the carabiner, limiting the risk of separating or losing the trolley/lanyard unit
  - Easily connect to the harness with the CARITRAC stowing accessory (included)

• Optimal durability for easy maintenance and optimized lifespan:
  - Double-row ball-bearings offer optimal durability
  - Carabiner with reinforced construction and hard anodization for greater resistance to humid and salty environments
  - Impact surfaces optimize contact between the trolley and the end brake of the zipline
  - Carabiner and impact surfaces are completely removable and available as replacement parts to optimize the lifespan of the trolley

Specifications

• Weight: 425g
• Cable diameter: 9 to 13mm
• Maximum speed: 25 m/s
• Certification(s): CE EN 17109, CE EN 12278, UKCA, UIAA
• Material(s):
  • Aluminum frame and carabiner, stainless steel sheave, nylon
